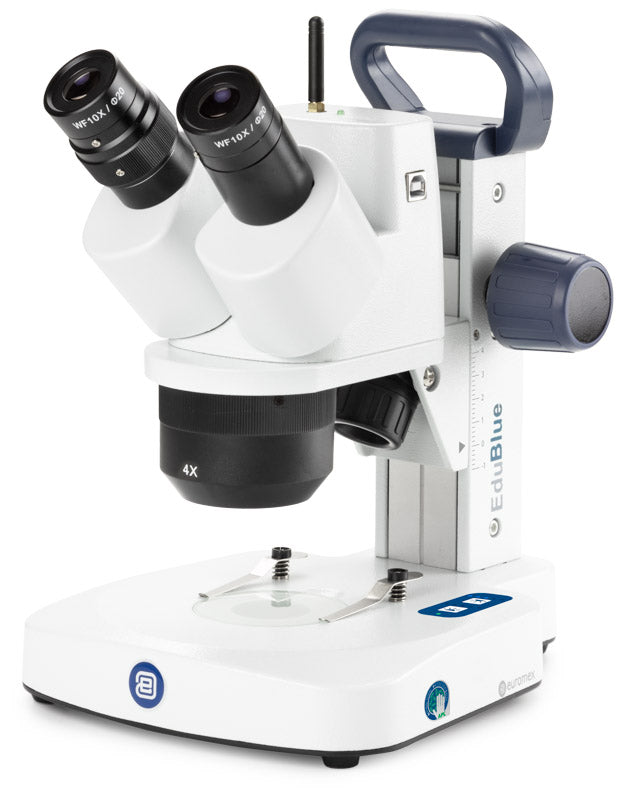

EduBlue ED.1805-SW Binocular Stereo Microscope

EduBlue

The EduBlue is the Euromex range of stereo microscopes designed for education: robust, with fixed eyepieces and a Greenough design for viewing insects, plants, rocks and minerals in three dimensions. The ED.1805-SW is the digital binocular version with a 5 MP CMOS camera built into the head, which sends the image over Wi-Fi to tablets, smartphones and PCs, or via a USB cable. Its 1x/2x/4x nosepiece and LED illumination with rechargeable batteries make it a very complete option for the classroom at a competitive price.

Technical specifications

• Pair of fixed WF 10x/20 mm widefield eyepieces, with eye guards
• Binocular head with 45° inclined tubes and a 5 MP USB 2.0 CMOS digital camera
• Dioptre adjustment on one tube and interpupillary distance adjustable from 55 to 75 mm
• 1x/2x/4x objective nosepiece for 10x, 20x and 40x magnification; field of view of 20, 10 and 5 mm
• Working distance of 60 mm and maximum object height of 26 mm
• Rack and pinion stand with white/black stage plate, clear plate and 2 specimen clips
• 1 W cordless LED incident and transmitted illumination, with rechargeable batteries and external mains adapter
• Intensity of both illuminations adjustable separately
• Paint with antibacterial protective coating
• Wi-Fi connection to tablets, smartphones and PCs, or via USB cable to a PC with ImageFocus software
• Supplied with a dust cover in a polystyrene case
