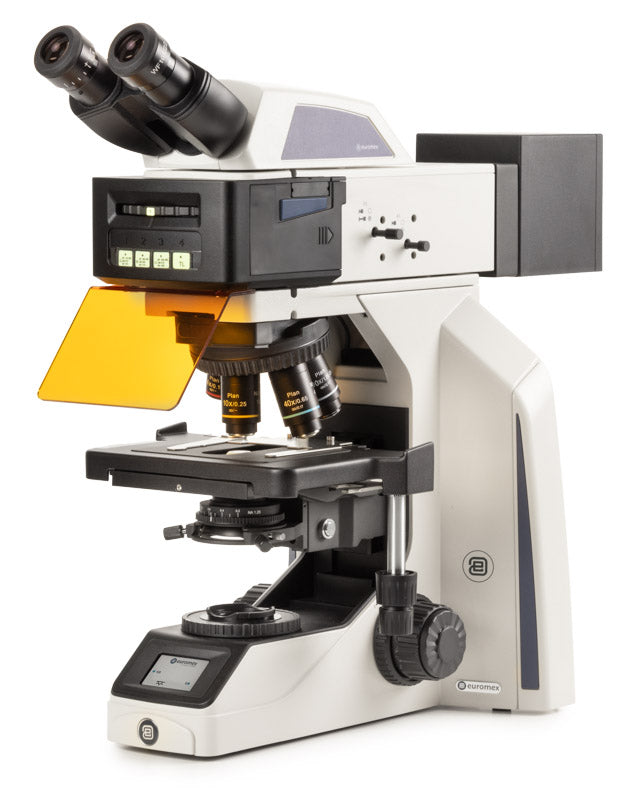

Achios-X Observer Fluorescence Binocular Microscope AX.3152-PLi

Achios-X Observer fluorescence

The Achios-X Observer fluorescence brings the ergonomics of the Euromex laboratory range to routine fluorescence work, with parfocal 60 mm EIS optics and smart light control. The AX.3152-PLi is the binocular version with 4x, 10x, S40x and S100x oil immersion plan objectives, and an LED fluorescence module with a rotating turret that includes UV (365 nm), blue (485 nm) and green (525 nm) excitation. A complete set-up for brightfield and fluorescence with value for money that is hard to match.

Technical specifications

• EWF 10x/22 mm eyepieces
• Siedentopf binocular head inclined at 30°, interpupillary distance from 47 to 78 mm and dioptre adjustment on both eyepieces
• Inverted quintuple nosepiece on ball bearings
• PLi plan objectives 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion, parfocal EIS 60 mm (not suitable for UV excitation)
• Optics with anti-fungus and anti-reflection coating for maximum light transmission
• Rackless stage of 238 x 155 mm with integrated mechanical stage of 79 x 55 mm
• Height-adjustable Abbe condenser
• Coaxial coarse and fine focusing: 200 divisions, 1 µm precision, 0.2 mm per revolution and a total travel of approximately 30 mm
• Focus stop to protect slides and objectives, with friction adjustment
• 3 W NeoLED Köhler transmitted illumination, dimmable, with external power supply of 100-240 V AC / 5 V DC 2 A (CE)
• LED fluorescence module with rotating turret and UV protection screen
• 3 excitation LEDs: blue 485 nm, green 525 nm and UV 365 nm
• Long-pass filter sets: EX 460-495 DM 505 EM 510 LP, EX 510-550 DM 570 EM 575 LP and EX 330-385 DM 410 EM 420 LP
• Smart light control (SLC): stores the intensity for each objective, NeoLED colour temperature from 3,200 to 7,000 K, LCD screen showing magnification and intensity, lock function and switch-off timer to save energy
• CSS system for storing the cable and power supply
• Includes mains cable, spare fuse of 500 mA 250 V, 5 ml of immersion oil and dust cover, in a polystyrene box
