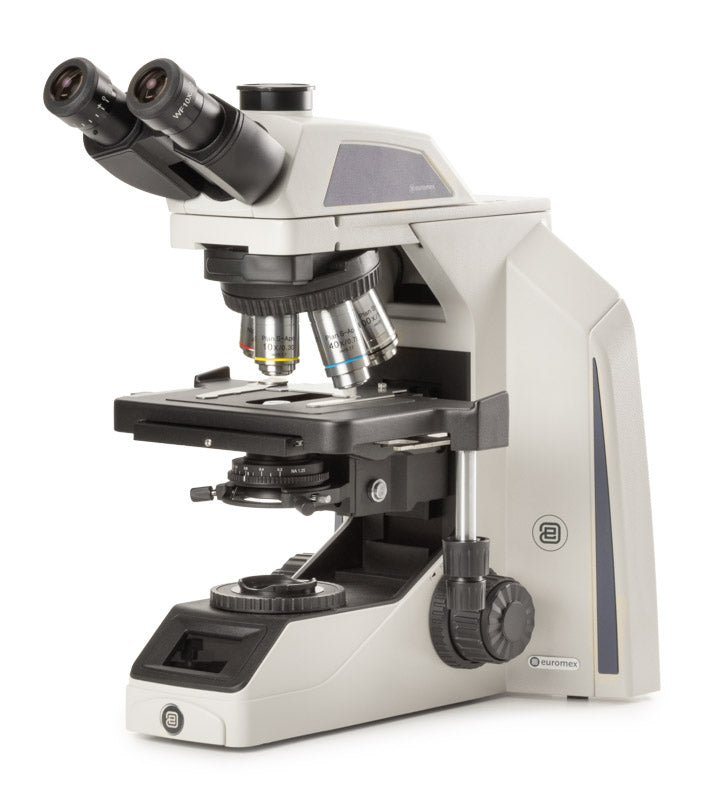

Trinocular Microscope Achios-X Observer AX.1153-APLi

Achios-X Observer

The Achios-X Observer is the Euromex laboratory range designed for long working sessions: Siedentopf head, focusing with 1 µm precision and illumination that remembers the intensity for each objective. The AX.1153-APLi is the trinocular version with APLi 4x, 10x, S40x and S100x oil immersion semi-apochromatic plan objectives, top-level optics for cytology and pathology with a camera port.

Technical specifications

• EWF 10x/22 mm eyepieces
• Siedentopf trinocular head inclined at 30°, interpupillary distance from 47 to 78 mm and dioptre adjustment on both eyepieces
• Quintuple reversed nosepiece on ball bearings
• APLi semi-apochromatic plan objectives 4x/0.13, 10x/0.30, S40x/0.75 and S100x/1.4 oil immersion, EIS 60 mm parfocal
• Optics with anti-fungus and anti-reflection coating for maximum light transmission
• Rackless stage of 238 x 155 mm with integrated mechanical slide holder of 79 x 55 mm
• Height-adjustable Abbe condenser
• Coaxial coarse and fine focusing: 200 divisions, 1 µm precision, 0.2 mm per revolution and a travel of approximately 30 mm
• Focus stop to protect slides and objectives, with friction adjustment
• 3 W NeoLED Köhler transmitted illumination, dimmable, with external power supply of 100-240 VAC / 5 VDC 2 A (CE)
• Smart Light Control (SLC): remembers the intensity for each objective, colour temperature from 3,200 to 7,000 K, LCD screen showing magnification and intensity, lock and standby timer to save energy
• Cable and power supply storage system (CSS)
• Includes mains cable, spare fuse of 500 mA 250 V, 5 ml of immersion oil and dust cover, in a polystyrene box
