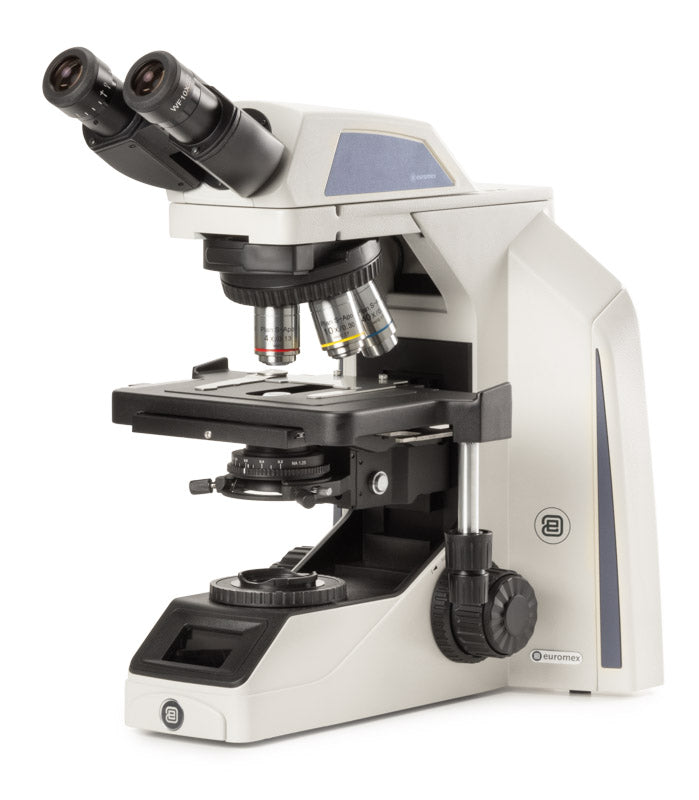

Binocular Microscope Achios-X Observer AX.1052-APLi

Achios-X Observer

The Achios-X Observer is the Euromex laboratory series for life sciences, featuring a Siedentopf head, 1 µm precision focusing and NeoLED Köhler illumination that memorises the intensity for each objective. The AX.1052-APLi is fitted with APLi plan semi-apochromatic objectives 4x, 10x and S40x, with a higher numerical aperture than the plan version, a very complete option for cytology and pathology.

Technical specifications

• EWF 10x/22 mm eyepieces
• Siedentopf binocular head inclined at 30°, interpupillary distance from 47 to 78 mm and dioptre adjustment on both eyepieces
• Inverted quintuple nosepiece on ball bearings
• APLi plan semi-apochromatic objectives 4x/0.13, 10x/0.30 and S40x/0.75, EIS 60 mm parfocal
• Optics with anti-fungus and anti-reflection coating for maximum light transmission
• Rackless stage of 238 x 155 mm with integrated mechanical stage of 79 x 55 mm
• Height-adjustable Abbe condenser
• Coaxial coarse and fine focusing: 200 divisions, 1 µm precision, 0.2 mm per revolution and a travel of about 30 mm
• Focus stop to protect slides and objectives, with friction adjustment
• 3 W NeoLED Köhler transmitted illumination, dimmable, with external power supply of 100-240 V AC / 5 V DC 2 A (CE)
• Smart Light Control (SLC): memorises the intensity for each objective, colour temperature from 3,200 to 7,000 K, LCD display showing magnification and intensity, lock and sleep timer to save energy
• CSS system for storing the cable and power supply
• Includes mains cable, spare fuse of 500 mA 250 V, 5 ml of immersion oil and dust cover, in a polystyrene box
