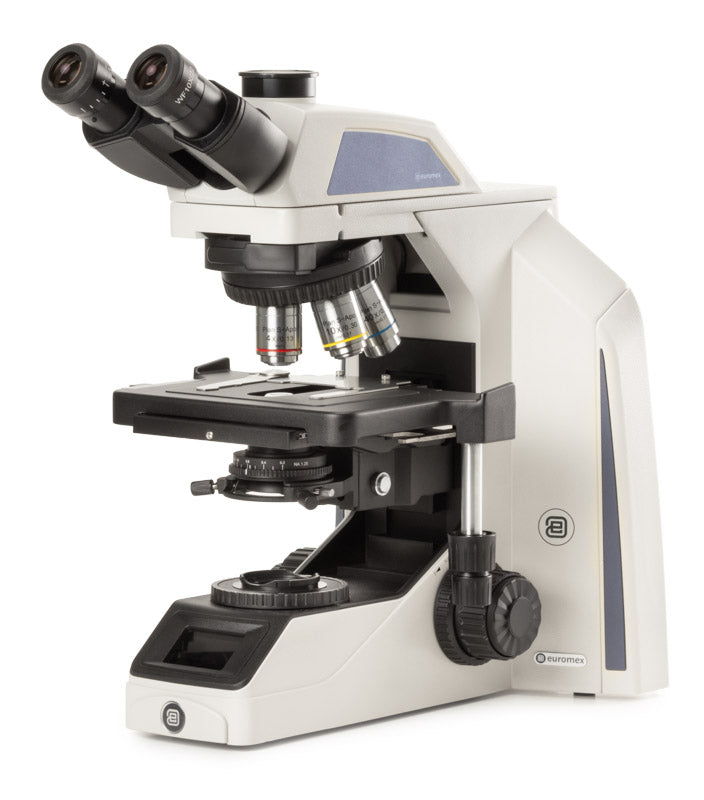

Achios-X Observer AX.1053-APLi Trinocular Microscope

Achios-X Observer

The Achios-X Observer is the Euromex laboratory range for life sciences, with a Siedentopf head, 1 µm precision focusing and intelligent illumination that memorises the intensity for each objective. The AX.1053-APLi is the trinocular version with APLi 4x, 10x and S40x plan semi-apochromatic objectives, an option with excellent optical quality for cytology and pathology, with a camera port.

Technical specifications

• EWF 10x/22 mm eyepieces
• Siedentopf trinocular head inclined at 30°, interpupillary distance from 47 to 78 mm and dioptre adjustment on both eyepieces
• Inverted quintuple nosepiece on ball bearings
• APLi plan semi-apochromatic objectives 4x/0.13, 10x/0.30 and S40x/0.75, EIS 60 mm parfocal
• All optics with anti-fungus and anti-reflection coatings for maximum light transmission
• Rackless stage of 238 x 155 mm with integrated mechanical stage of 79 x 55 mm
• Abbe condenser with height adjustment
• Coaxial coarse and fine focusing: 200 divisions, 1 µm precision, 0.2 mm per revolution and a total travel of approximately 30 mm
• Focus stop to protect slides and objectives, with friction adjustment
• Adjustable 3 W NeoLED Köhler transmitted illumination, with external power supply 100-240 V AC / 5 V DC 2 A (CE)
• Smart Light Control (SLC): memorises the intensity for each objective, NeoLED colour temperature from 3,200 to 7,000 K, LCD screen showing magnification and intensity, lock and standby timer to save energy
• CSS system for storing the cable and power supply
• Includes mains cable, spare 500 mA 250 V fuse, 5 ml of immersion oil and dust cover, in a polystyrene box
