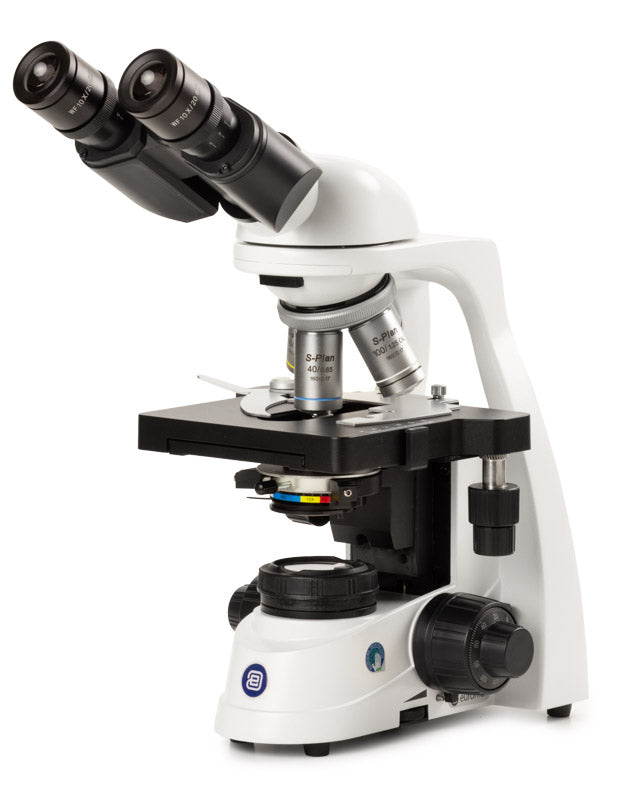

BlueScope BL.1152 Binocular Microscope

BlueScope

The BlueScope is the Euromex series designed for education, universities and small laboratories, with a design focused on durability, safety and ease of use. The BL.1152 is the binocular version with 4x, 10x, S40x and S100x semi-plan objectives (up to 1000x magnification), a rackless stage, a colour-coded condenser and 3 W NeoLED Köhler illumination with white or halogen-tone light.

Technical specifications

• WF 10x/20 mm eyepieces, secured
• Siedentopf binocular head with 30° inclined tubes, interpupillary distance from 48 to 75 mm and ± 5 dioptre adjustment on the left tube
• Reversed quadruple nosepiece on ball bearings
• 4x, 10x, S40x and S100x semi-plan objectives
• All optics with anti-fungus and anti-reflection coating for maximum light transmission
• Coaxial coarse and fine focusing with 200 divisions: 2 µm precision, 0.2 mm per turn and a total travel of approx. 10 mm
• Friction adjustment and quick focus
• 140 x 135 mm stage with a 75 x 50 mm rackless mechanical stage
• Abbe condenser N.A. 1.25, height adjustable, with iris diaphragm and filter holder
• 3 W NeoLED Dual Color Köhler illumination
• External USB power supply, 100-240 V AC / 5 V DC
• Includes power cable, dust cover and 5 ml of immersion oil in a polystyrene case
